Radial Engineering Reamp HP Studio Reamper

Radial Engineering Reamp HP Studio Reamper

The Reamp HP takes the signal from a headphone output jack on an audio interface or a mobile device and converts it to feed mono guitar amps and effects pedals for Reamping.

• Play prerecorded tracks through amps and pedals
• Easily Reamp from any interface or playback device
• 1/4" and 3.5mm inputs connect to a headphone output jack
• Transformer isolated for low-noise recordings
• Explore new creative options and improve your mixes

Reamping made easy

The Reamp HP is designed to accept the signal from the headphone output jack on your interface, making it incredibly easy to connect on the fly without having to repatch cables or dig around behind your studio desk or equipment rack. Simply assign the track you want to Reamp to the right channel of your headphone output and you're ready to feed guitar, bass, or even vocal tracks through your amplifier to record and experiment with new tones and settings. You can even assign stereo tracks to the Reamp HP and sum them down using the dedicated mono switch on the device.

More flexibility = more creativity

The Reamp HP features both 1/4" and 3.5mm inputs, so you aren't limited to just Reamping tracks from your audio interface. Connect a smartphone or tablet to the Reamp HP and create new sounds by combining a sound creation app with your favorite pedals and amps. The Reamp HP is equipped with an isolation transformer and a ground lift switch to eliminate hum and buzz and help produce a clean recording, along with a level control for fine-tuning the output signal.

Reamp HP Applications

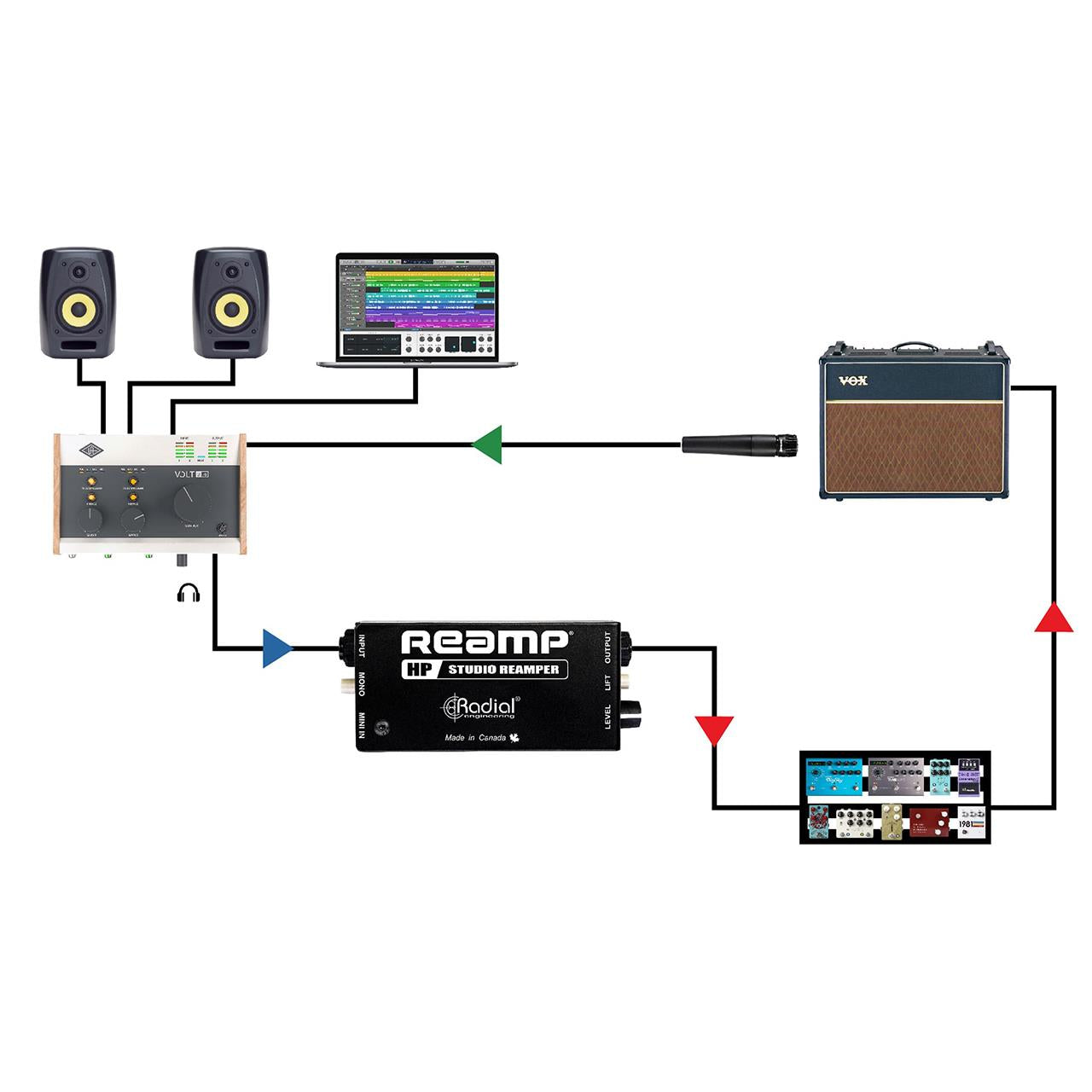

Reamping from a headphone output
The Reamp HP connects directly to the headphone jack on your audio interface, so you don’t have to re-plug or use up limited outputs. Connect the output of the Reamp HP to your pedals and an amplifier and record the results back into your audio software.

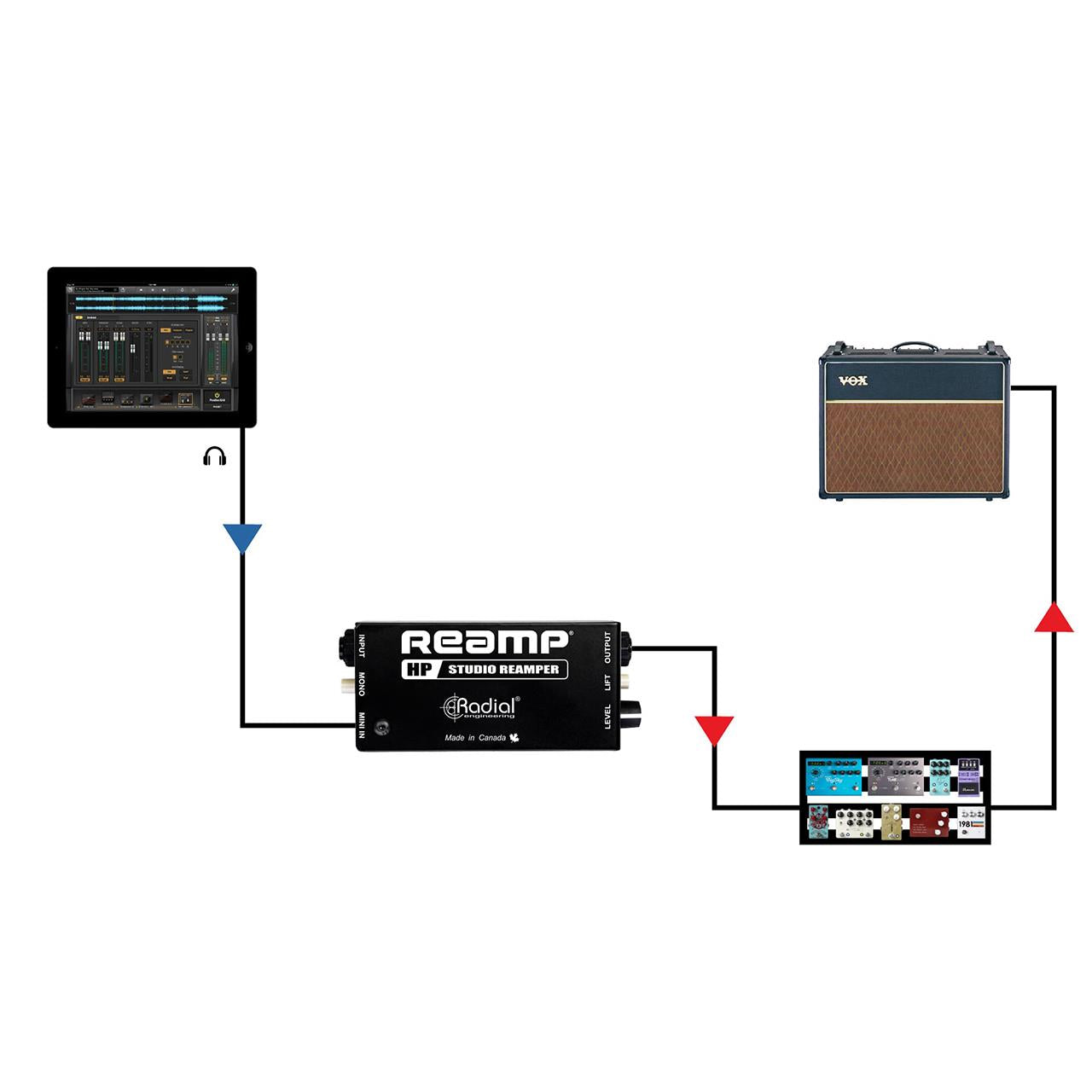

Reamping with a mobile device
The Reamp HP features a 3.5mm mini input jack that can accept signals from smartphones and tablets, so you can use your favorite sound creation app to feed your pedals and amplifiers. Create a unique performance on stage or put a mic on the amp and record the results in the studio.

Connections

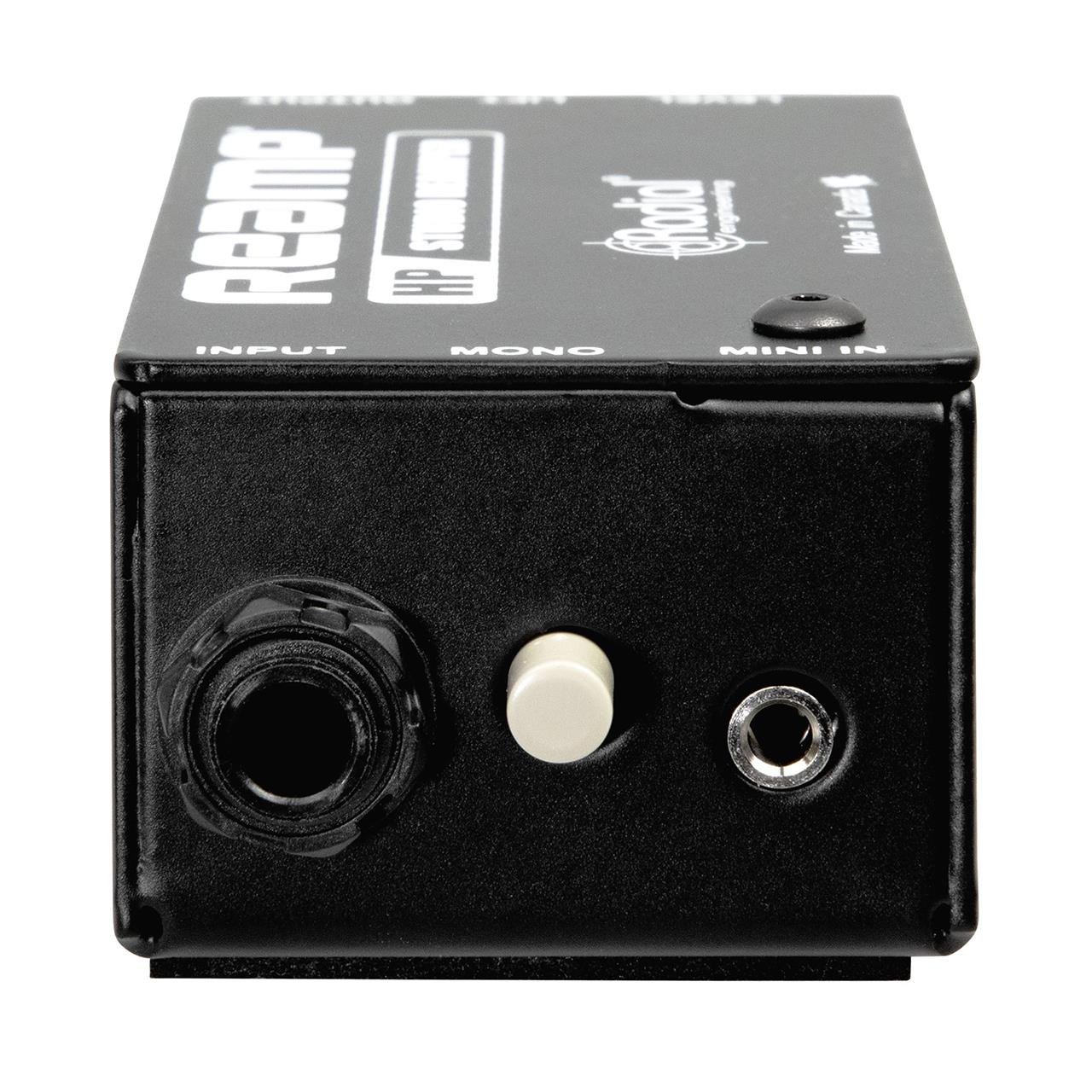

• INPUT: 1/4" TRS stereo input jack accepts signals from the headphone output on an audio interface to use for Reamping.
• MONO: Sums the left and right input channels together. When disengaged, only the right channel is used to feed the output of the Reamp HP.
• MINI IN: 3.5mm input jack for easy connection to the outputs of smartphones, tablets, and laptops.

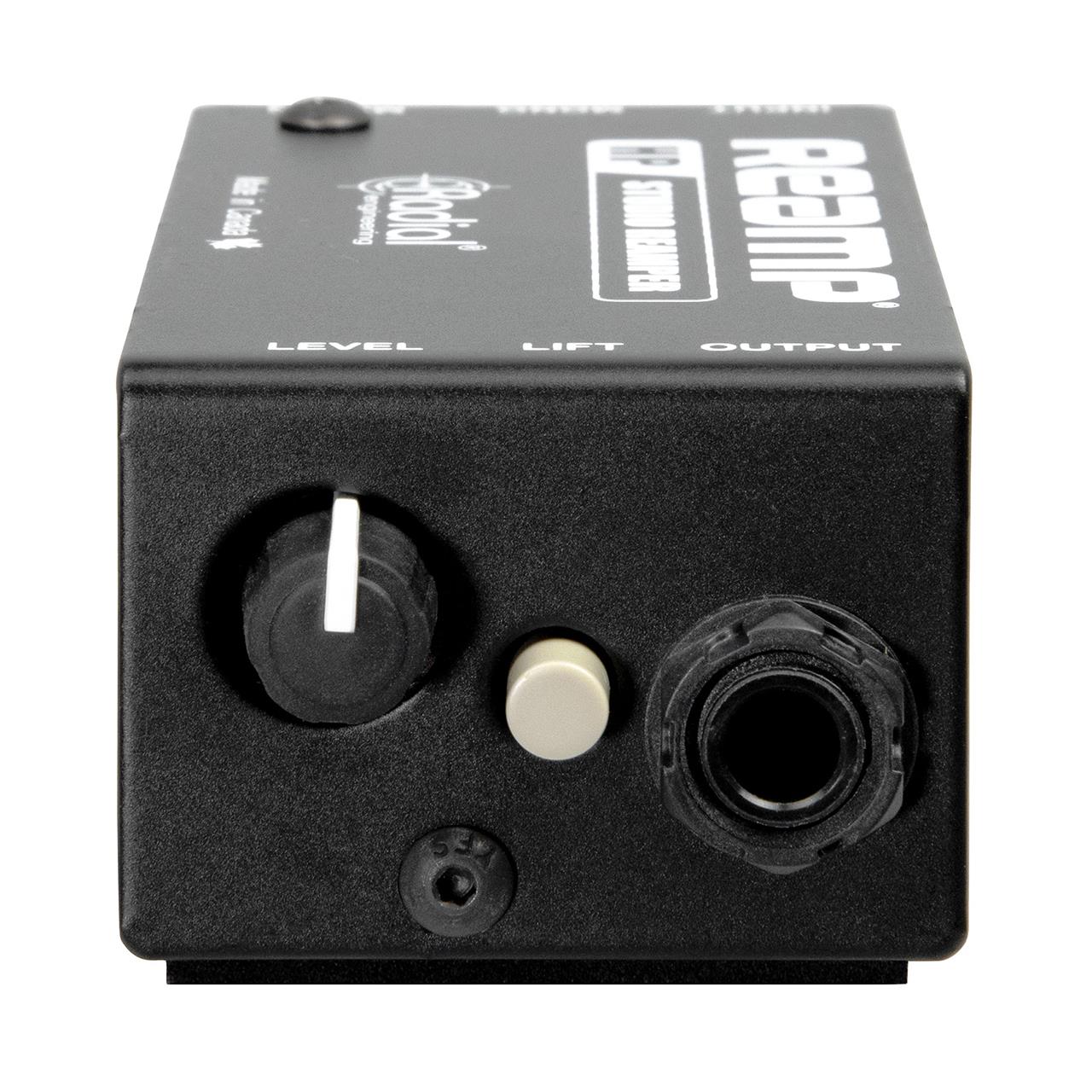

• LEVEL: Controls the output signal level from the Reamp HP for optimal gain-staging through amplifiers and pedals.
• LIFT: Disconnects pin-1 at the input connectors to remove buzz and hum caused by ground loops.
• OUTPUT: 1/4" TS mono Reamp output used to feed guitar amps and effects pedals.

What's Included

• Radial Engineering Reamp HP Studio Reamper

Warranty Period

3 Years
