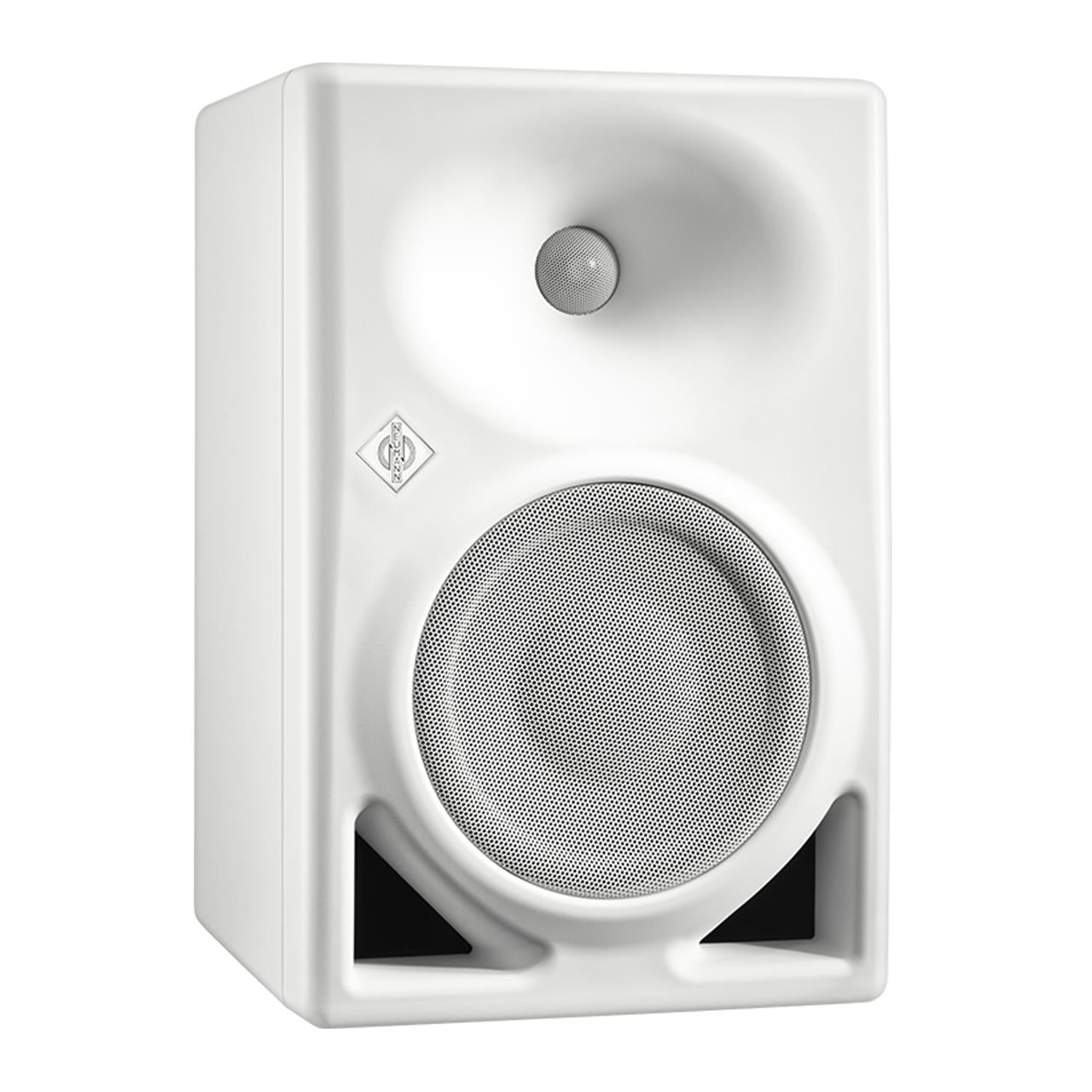

Neumann KH 150 W 2-Way DSP Powered Nearfiled Studio Monitor, White

Neumann KH 150 W 2-Way DSP Powered Nearfiled Studio Monitor, White

Neumann Accuracy, Serious Bass and Power to Spare

The KH 150 is a powerful bi-amplified studio monitor with reference-class performance. Its 6.5" woofer in a bass reflex cabinet provides stunning low end and high SPL capability with undiminished clarity. DSP controlled electronics ensure linear phase response and allow for room-adaptive calibration via Neumann’s revolutionary MA 1 Automatic Monitor Alignment

• Linear frequency and phase response
• DSP engine for improved performance and automatic room alignment
• Deep low end down to 39 Hz and high SPL capability
• Analog and S/PDIF connectivity (optional: AES67)
• High-precision drivers, Mathematically Modelled Dispersion™(MMD™) waveguide
• Razor-sharp imaging due to extremely low tolerances (± 0.8 dB)
• May be combined with other KH line speakers in immersive/surround setups

What You Hear Is What You Get

The KH 150 follows the same philosophy as all Neumann studio monitors: highest linearity, lowest distortion, no coloration, and perfect adaptability to any acoustic environment. It allows you to hear every nuance of your tracks. Mixing becomes so much faster and easier, once the guesswork is over. And more creative, too: Sounds genius, but can I get away with that? Is that vocal bright or sibilant? Is it too much bass? The KH 150 will tell you. Honestly.

One Bigger

What differentiates the KH 150 from its smaller siblings is its deeper bass response down to 39 Hz. That’s almost as low as the larger KH 310, thanks to the KH 150’s novel 6.5" high-precision woofer in a carefully designed bass reflex cabinet. The KH 150 is thus ideally suited to urban music, EDM, film scoring, and all styles that require extended low end and/or elevated listening levels. Thanks to powerful amplifiers (145W/100W) and sophisticated protection limiters, no clarity is lost even at high SPLs. But, being a true universalist, the KH 150 works just as well for everything from rock to classical music, broadcast applications and voice-over work.

The KH 150 has an exceptionally linear frequency response from 39 Hz to 21 kHz (±3 dB). Not only that: It also linearizes the phase response! Which translates to clear mids with astonishing transparency as well as extreme accuracy in the time domain: precise impulse reproduction and finely resolved reverbs. This is made possible by DSP controlled electronics which allow for sophisticated crossovers avoiding the phase distortion caused by analog filters. The internal DSP also realizes new standards in tonal consistency. The KH 150 is made to extremely low tolerances of no more than ± 0.8 dB! And you can hear it, too: Stereo imaging is razor-sharp.

Ready for Your Room

Even the best loudspeaker only sounds as good as the acoustic environment allows. Neumann’s Mathematically Modelled Dispersion™(MMD™) waveguide guarantees a wide sweet spot and minimizes desk reflections. But the KH 150 goes much further: Its internal DSP allows for room calibration via Neumann’s revolutionary Automatic Monitor Alignment. MA 1 (sold separately) makes sure your DSP powered monitors are optimally adapted to the character of your room and perfectly calibrated for your listening position. Even in acoustically treated rooms, this results in a huge improvement.

Tonal compatibility with other KH line studio monitors makes it possible to use the KH 150 in mixed setups e.g. in surround/immersive setups. For flexible connectivity the KH 150 features both analog and digital inputs.

AES 67 – Audio over IP

Additionally, the KH 150 AES67 model variant offers integrated redundant AES67 audio network ports that are fully compliant with broadcast standards such as ST 2110, ST 2022-7 redundancy, and RAVENNA. At the same time, the KH 150 AES67 is compatible with DANTE®-generated AES67 network streams.

Energy Efficient

Neumann engineers took great care to develop a patent pending amplifier technology which combines superior audio performance with the energy efficiency of Class D. Although the KH 150’s amplifiers deliver up to 145 W to the 6.5" woofer and 100 W to the 1" tweeter, they only consume 17 W at idle. Auto-standby reduces power consumption to 0.3 W when the KH 150 has not been used for a while, but can be deactivated.

The KH 150 is available in two color options, anthracite and white.

Technical Specifications

Free field frequency response ±3 dB:
39 Hz ... 20.4 kHz

Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu):
<20 dB(A) SPL

Max. SPL calc. in half space at 3% THD at 1 m (averaged between 100 Hz and 6 kHz):
118.7 dB SPL

Acoustical Principle:
Bassreflex, Ports at the front

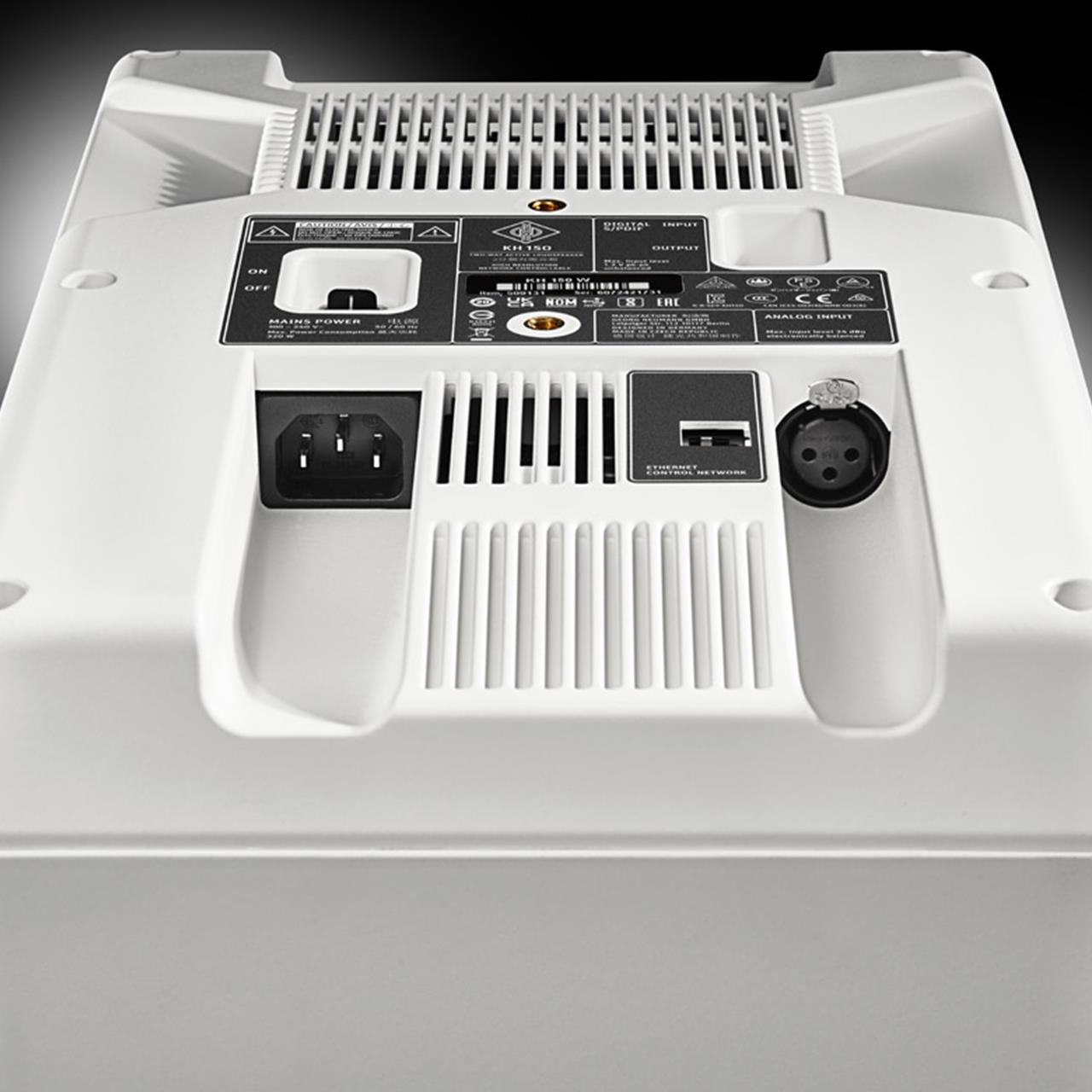

Analog input(s):
XLR (analog electronically balanced)

Analog input impedance:
24k Ohms

Digital input(s):
KH 150 / KH 150 W: RCA (75 Ω): S/PDIF; KH 150 AES67
KH 150 W AES67: RCA (75 Ω): S/PDIF, Ethernet"

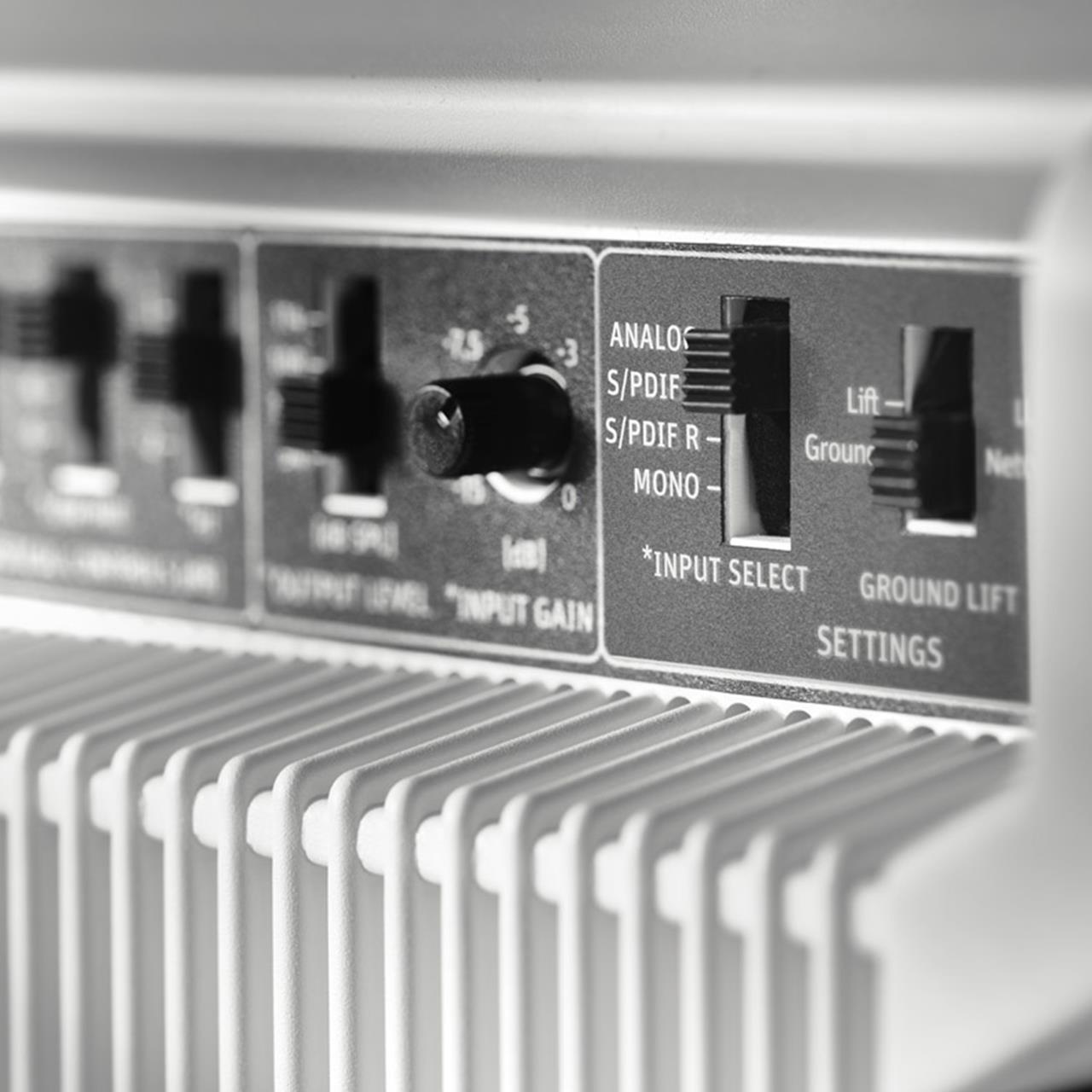

Input gain control (sensitivity):
0 dB ... -15 dB

Output level control (output level in 1 m based on 0 dBu input level):
94; 100; 108; 114 dB SPL

Equalization:
Bass: 0; -2; -4; -6 dB

Equalization:
Low-Mid: 0; -2; -4; -6 dB

Equalization:
Treble: +1; 0; -1; -2 dB

Control:
Local; Network

Crossover frequency:
1.7 kHz

FIR phase correction:
Linear phase (105 Hz ... 16 kHz; +/- 45°)

Protection circuitry:
Independent soft clip, peak and thermo limiters for woofer and tweeter; Woofer excursion limiter; thermo limiter for the electronics and amplifiers

AES67 Audio-over-IP Interface:
KH 150 AES67; KH 150 W AES67

Output power woofer amplifier (THD+N with limiter deactivated: 10%):
145 W

Output power tweeter amplifier (THD+N with limiter deactivated: 10%):
100 W

Woofer:
KH 150 / KH 150 AES67: 165 mm (6.5") with protecting metal grille, black
KH 150 W; KH 150 W AES67: 165 mm (6.5") with protecting metal grille, white

Tweeter:
KH 150 / KH 150 AES67: 25 mm (1"") with protecting metal grille, black
KH 150 W; KH 150 W AES67: 25 mm (1"") with protecting metal grille, white

Product dimensions (height x width x depth):
345 x 225 x 273 mm; 13.58" x 8.86" x 10.75"

Product weight:
8.0 kg (17 lbs 10 oz)

What's Included

• 1 x KH 150 W Studio Monitor
• 4 x Mains Cables, white (EU/KC, UK, US and CCC)
• 4 x Self-adhesive feet
• 1 x Safety Guide
• 1 x Supplement “Getting Started Quickly”

Warranty Period

2 Years
