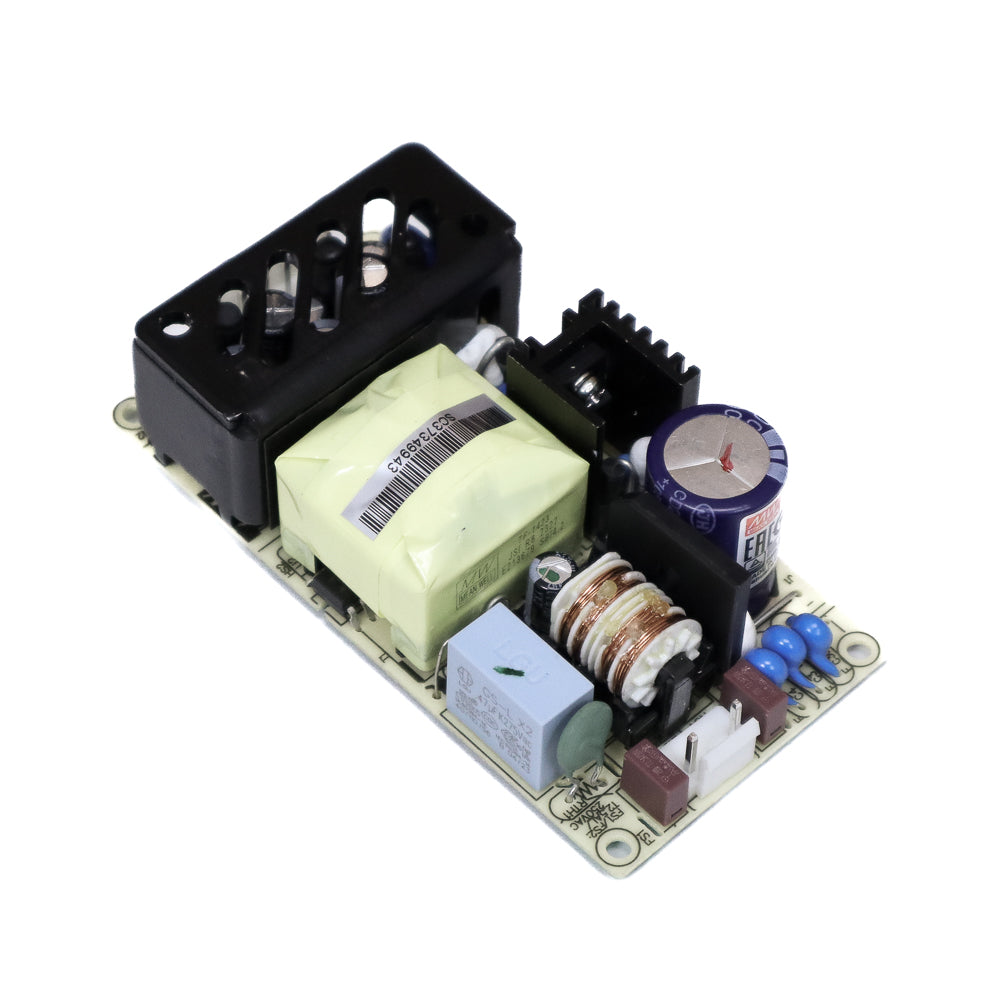

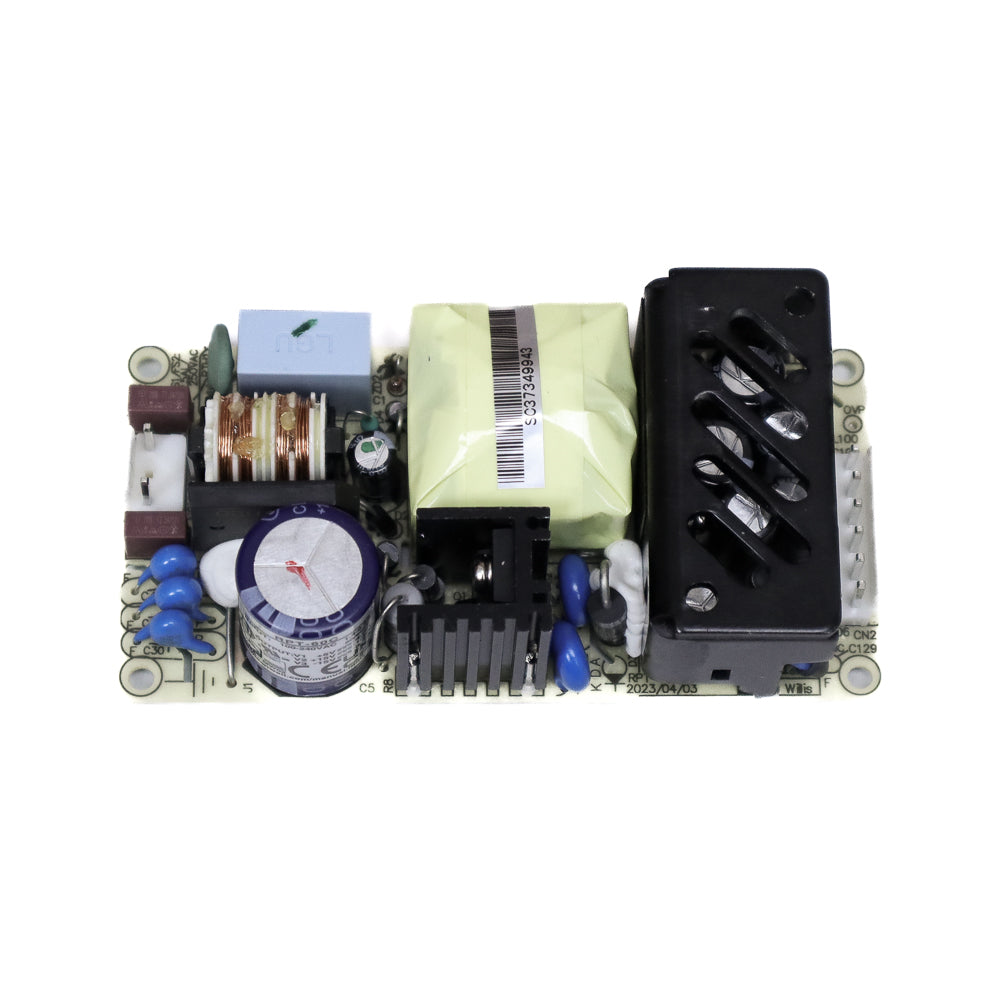

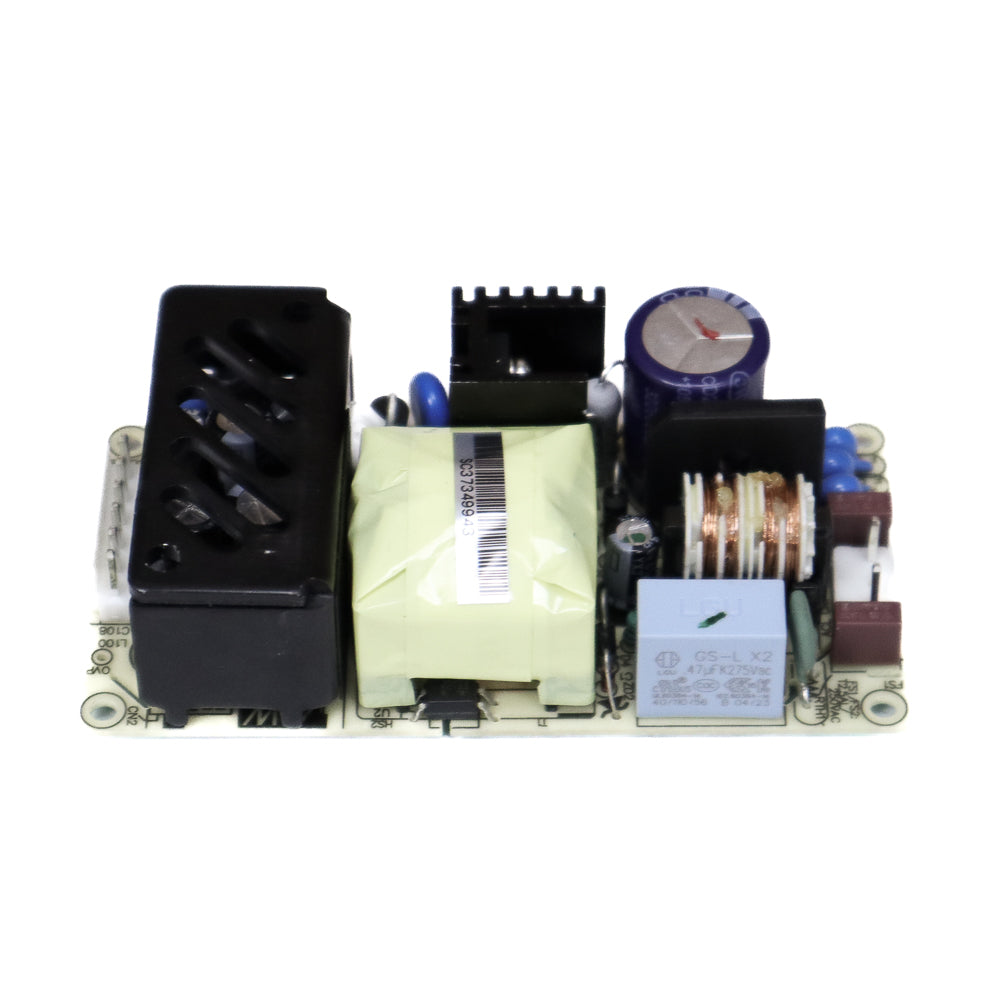

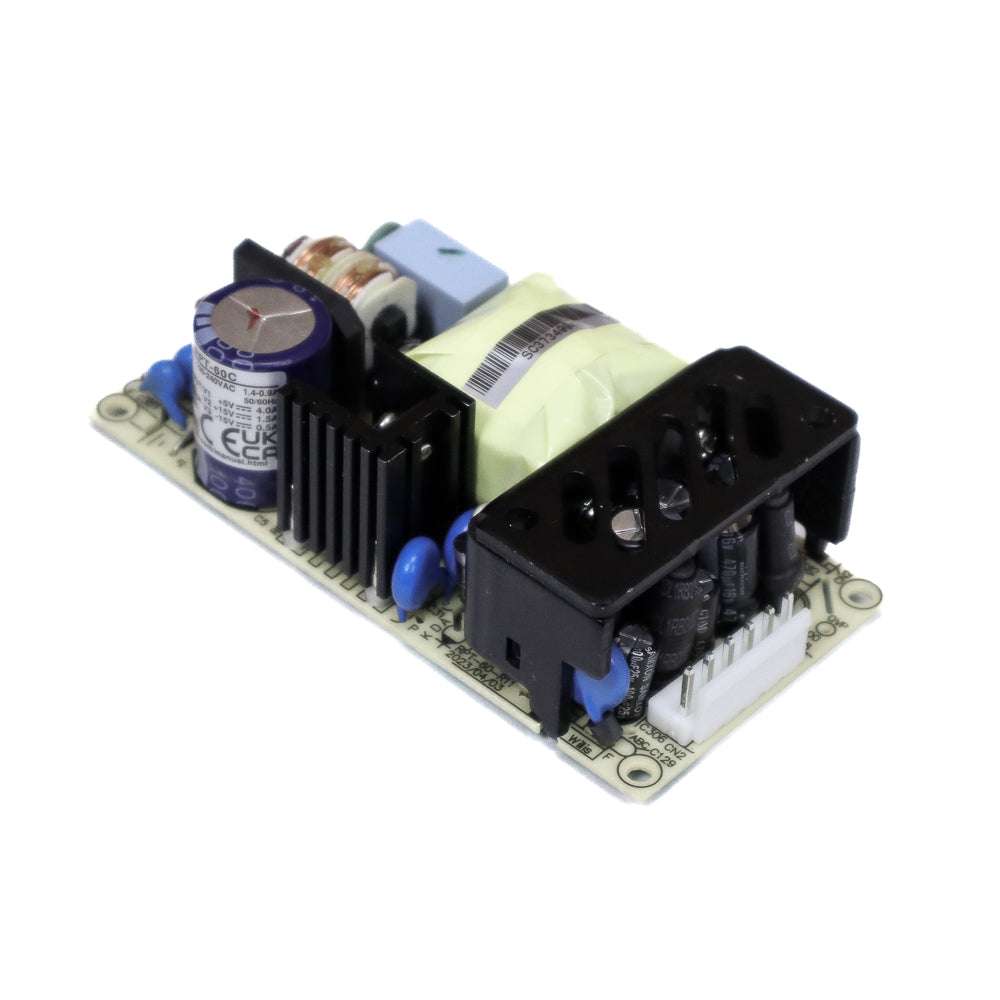

MEAN WELL RPT-60C AC to DC Power Supply

AC-DC Triple output Medical Open frame power supply; Output 5Vdc at 4A +15Vdc at 1.5A -15Vdc at 0.5A; 2xMOPP; compact size 4 x 2 inch

Features

• 4 x 2 inch miniature size
• Universal AC input/full range
• Low leakage current less than 100 uA
• Cooling by free air convection
• Medical safety approved (2 x MOPP between primary to secondary)
• UL60950-1/IEC60950-1/EN60950-1 ITE safety approved
• Fixed switching frequency at 100 kHz
• Suitable for BF application with appropriate system consideration

Specifications

• Brand: MEAN WELL
• Item number: RPT-60C
• Series: RPT-60
• RoHS: Compliant
• Packing quantity: 96
• Application: ITE EN/UL/IEC 60950, Medical EN/UL 60601
• Net weight (gram): 160
• Technology: AC/DC
• Power Format: Open Frame - PCB
• Output Power (W): 60
• Output Voltage (V): -15, 5, 15
• Output Current (A): 0.55
• Input Voltage (V): 110/230 universal input, 90 - 264
• IP Rating: No IP assigned
• Width (mm): 50.8
• Height (mm): 29
• Depth (mm): 101.6
• Dimming Technology: No Dimming
• Medical Approval: 2xMOPP

What's Included

• MEAN WELL RPT-60C Power Supply
