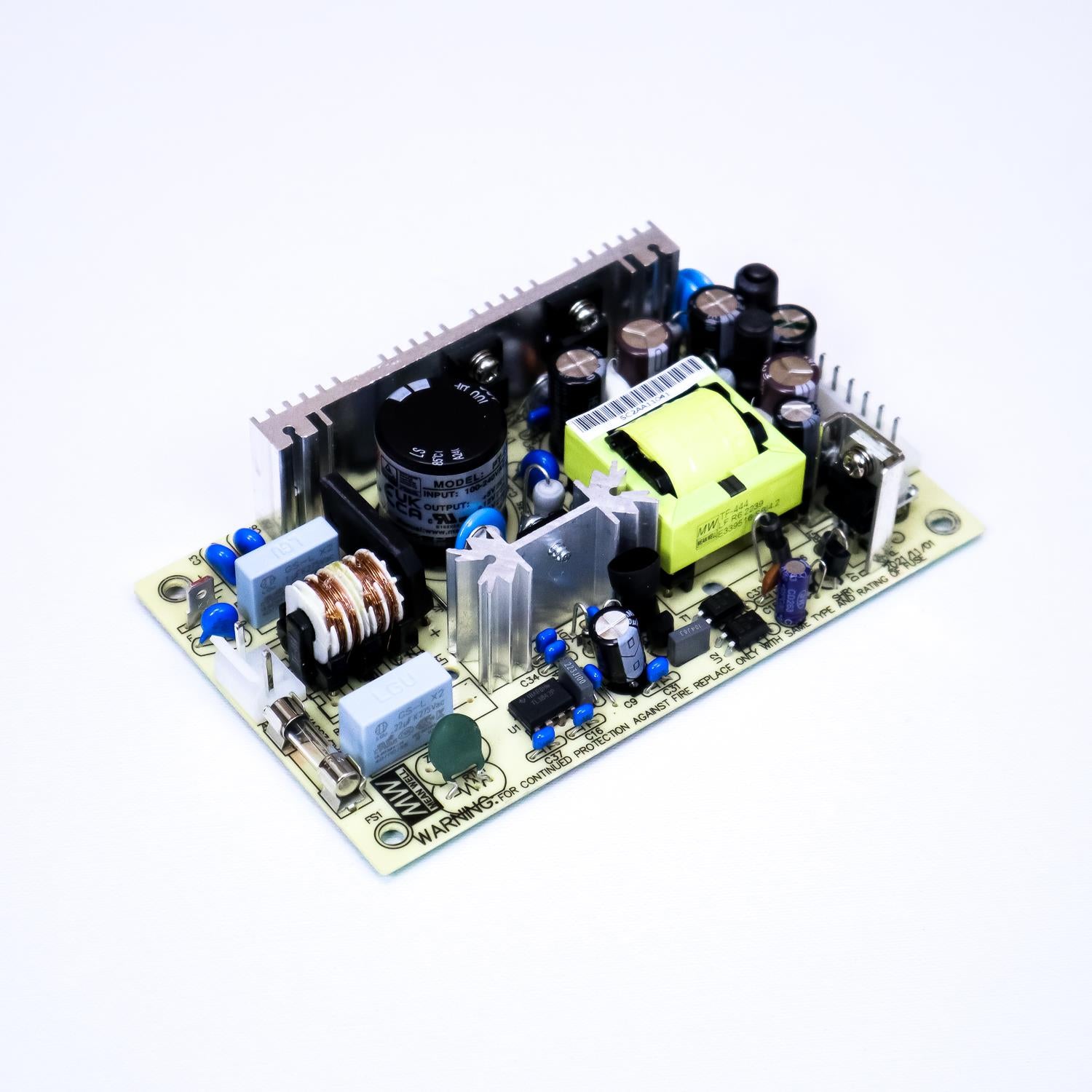

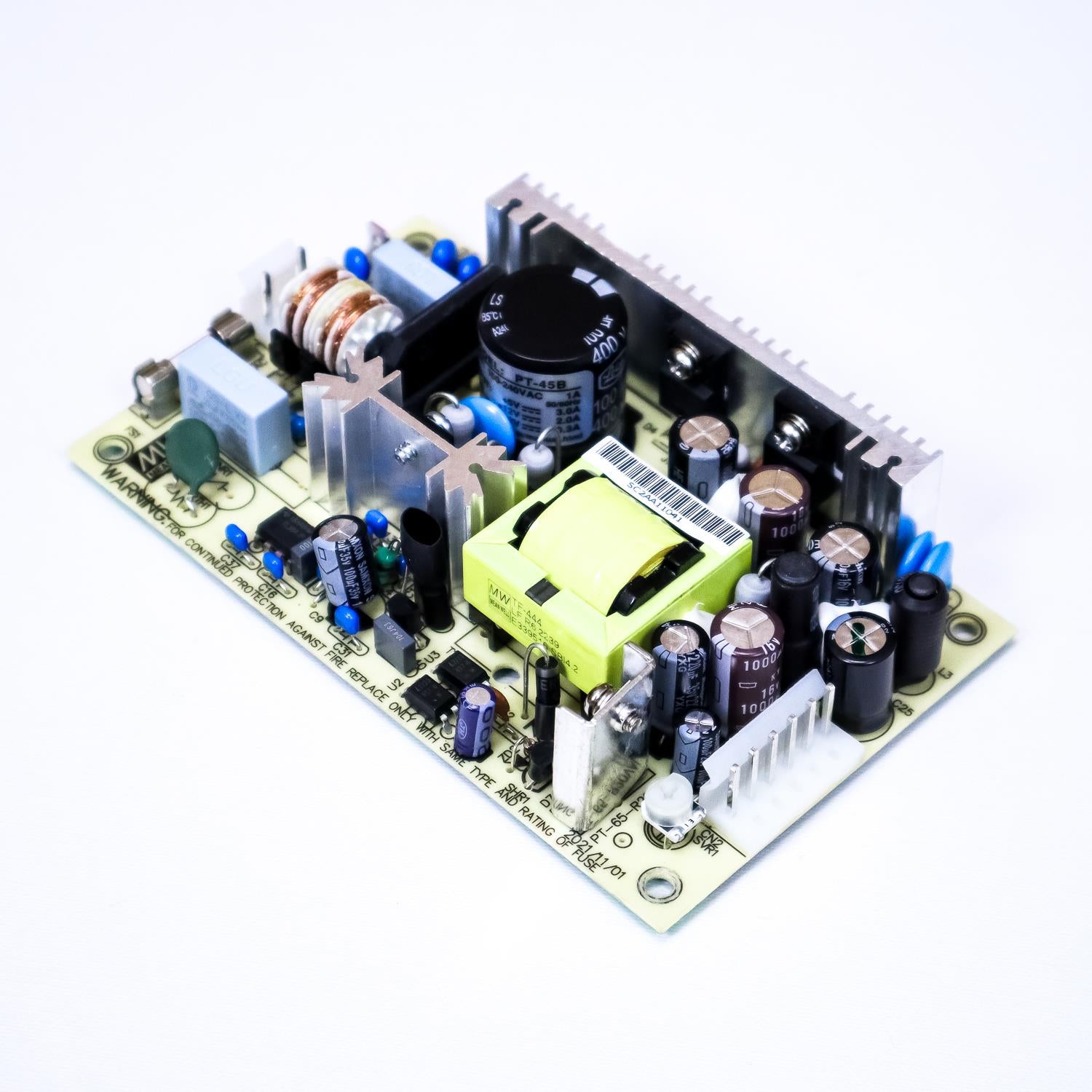

MEAN WELL PT-45B AC to DC Power Supply

MEAN WELL PT-45B AC to DC Power Supply

45W Open-Frame AC-to-DC Switching Triple Output Power Supply

Channel 1: +5 Volts @ 3 Amps

Channel 2: +12 Volts @ 2 Amps

Channel 3: -12 Volts @ 0.3 Amps

Features

• Input: 90-264VAC @ 47-440Hz
• Size: 5.0"L x 3.0"W x 1.1"H
• Ripple and Noise: 50mVp-p
• Load Regulation: ±3.0%
• Line Regulation: ±1.0%
• Universal AC input/full range
• Short-circuit, Overload, Over-voltage protection
• Certification: UL/CUL/TUV/CE

Specifications

• Number of Outputs: 3
• Output Voltage: 5 VDC
• Output Current: 3 A
• Additional Output Voltages (VDC): 12 , -12
• Input Voltage: 90 VAC to 264 VAC
• Input Frequency: 47 Hz to 440 Hz
• Output Connector Type: Molex 5273-06
• PFC Function: No
• Agency Approvals: UL, CUL, TUV, CB, CE, EN, EAC
• Efficiency: 75%
• Family: PT-45
• Power Rating: 42.6 W
• Maximum Input Current: 1 A
• Minimum Operating Temperature: -10°C
• Maximum Operating Temperature: 60°C
• Minimum Isolation Voltage: 3000V
• Switching: Auto Switching SMPS
• Style: Open Frame
• Length: 5 in.
• Width: 3 in.
• Height: 1.10 in.

What's Included

• MEAN WELL PT-45B Power Supply
