Focusrite RedNet A16R MkII 16x16 Analog Dante Interface
RedNet A16R MkII is a 16-channel analogue Interface for Dante networks, with two channels of AES3 I/O. Individual input and output channel level controls allow for precise adjustment of all I/O levels using RedNet Control. With two power supplies and primary and secondary etherCON network connectors, RedNet A16R MkII is perfect for critical-path applications in recording, post-production, live sound and broadcast. Built-in redundancy features allow for silent fail-over in the event of power or network outage, providing reassurance for system technicians.

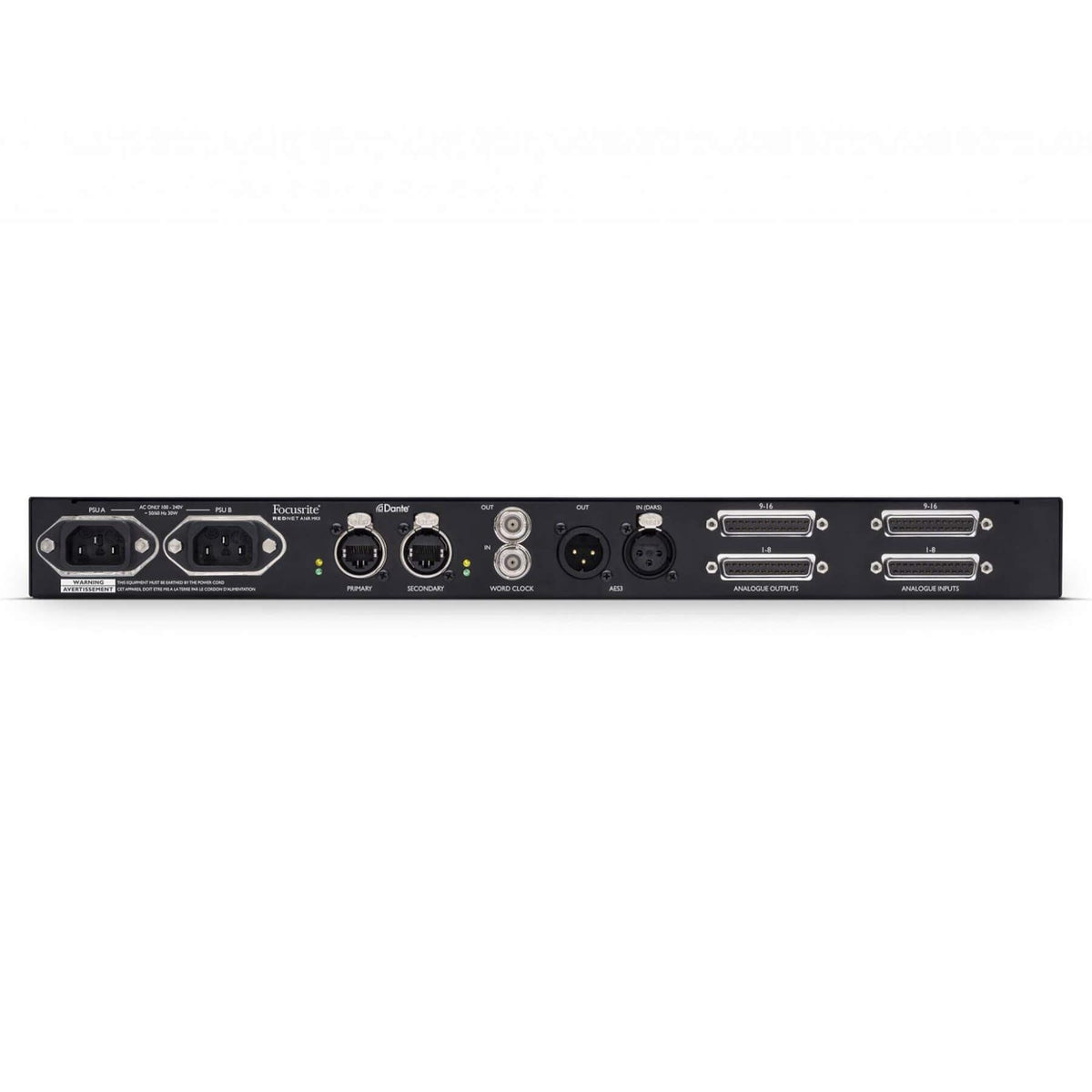

Analogue inputs and outputs are connected through four rear-panel AES59-configured DB25 connectors, while an additional pair of AES3 I/O is provided through male and female XLR for added flexibility. The XLR input can accept DARS signals in addition to AES3. Word Clock I/O on BNC connectors allows external devices to clock to RedNet A16R MkII, or alternatively allows RedNet A16R MkII to act as a network clock grand master, synchronised to external input. RedNet A16R MkII is well suited to permanent installation and repeated strike and setup: all connectors lock and remain terminated even under stress, providing worry-free installation and peace of mind once situated in a rack. In addition, all Focusrite Pro products come with a three-year warranty and award-winning customer support.
Features
- 16-channel bi-directional analogue interface for Dante networks, with additional two-channel AES3 I/O.
- Precision A-D and D-A conversion with 119dB dynamic range, flat from 20Hz - 20 kHz (+/- 0.15dB).
- Individual input/output channel level control using RedNet Control software.
- Dual PSUs with locking IEC inlets.
- Dual locking etherCON connectors for Primary and Secondary network connections.
- Power supply and ethernet redundancy with auto switchover in case of failure.

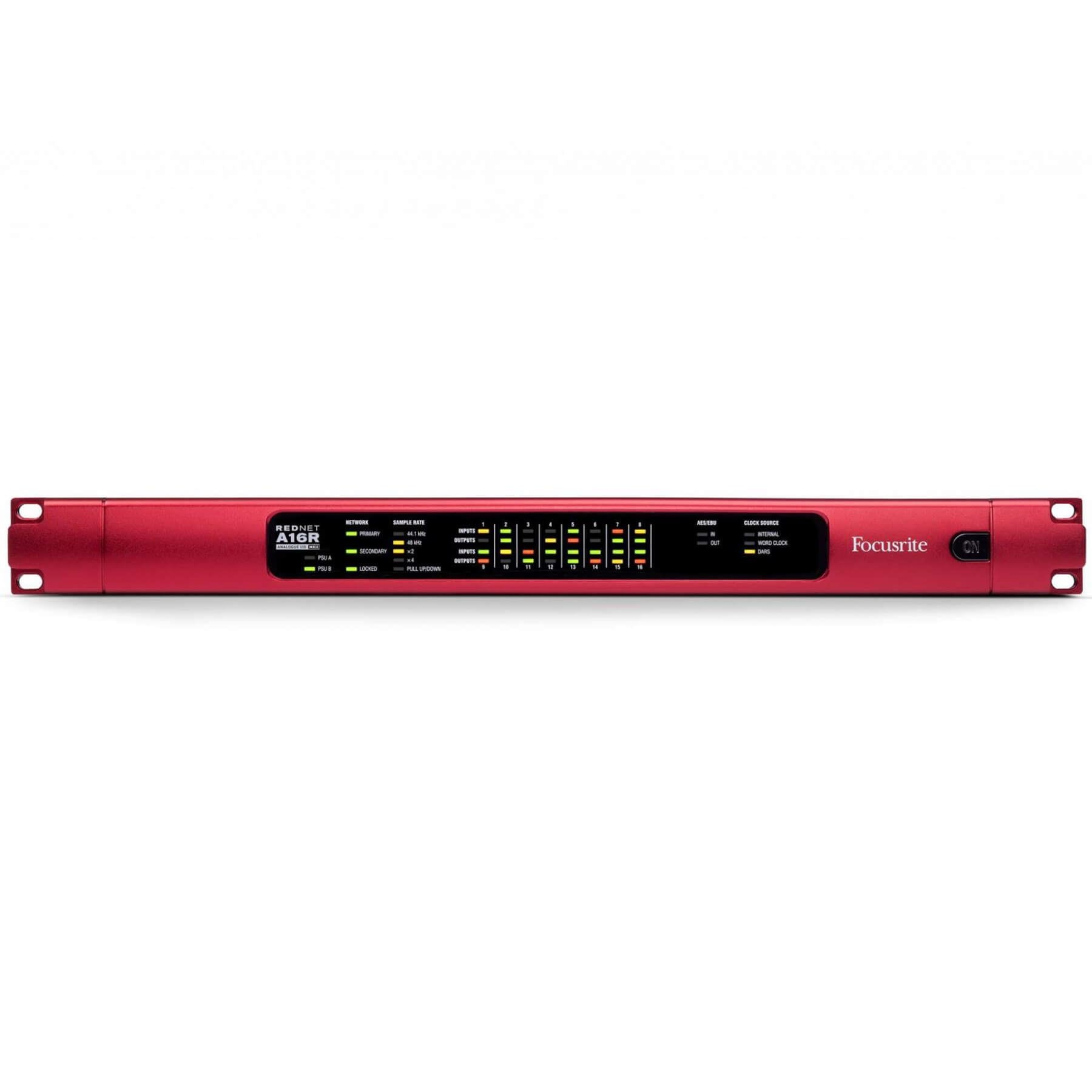

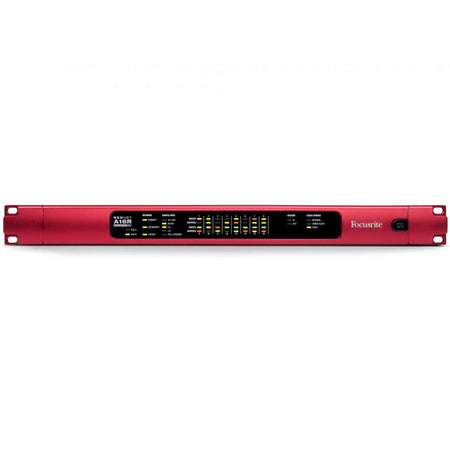

- Front-panel LED indicators for PSU, network, sample rate, signal present and clock source status.
- Sample rate conversion on the AES3 inputs allows external equipment to run at any sample rate.
- Analogue I/O on four AES59 standard DB25 connectors.
- Digital I/O on a pair of XLR connectors (AES3).
- Rear panel XLR connector can either be used as a DARS input or as a traditional AES3 audio input.
- BNC connectors for Word Clock input and output.
- Compact 1U chassis allows maximum functionality in minimum rack space.
- AES67 and AES70 compliant
- SMPTE ST 2110 compliant (requires Dante Domain Manager, sold separately)
- Full operability with Focusrite RedNet and Red interfaces, plus all Dante devices from hundreds of manufacturers.
- Remote control and device management with RedNet Control. Routing and audio subscription management using Dante Controller.
What's Included
- RedNet A16R MkII
- 2x IEC AC mains cables
- 2x IEC retaining clips
- Focusrite Pro important information guide provides links to:
- RedNet Control
- RedNet PCIe drivers (included with RedNet Control download)
- Audinate Dante Controller (installed with RedNet Control
Warranty Period
3 Years
