Ashly MX-508 (MX508) 8-Input Stereo Mic/Line Mixer with EQ

This used Ashly MX-508 Mic/Line Mixer comes with a Power Cable.

Condition

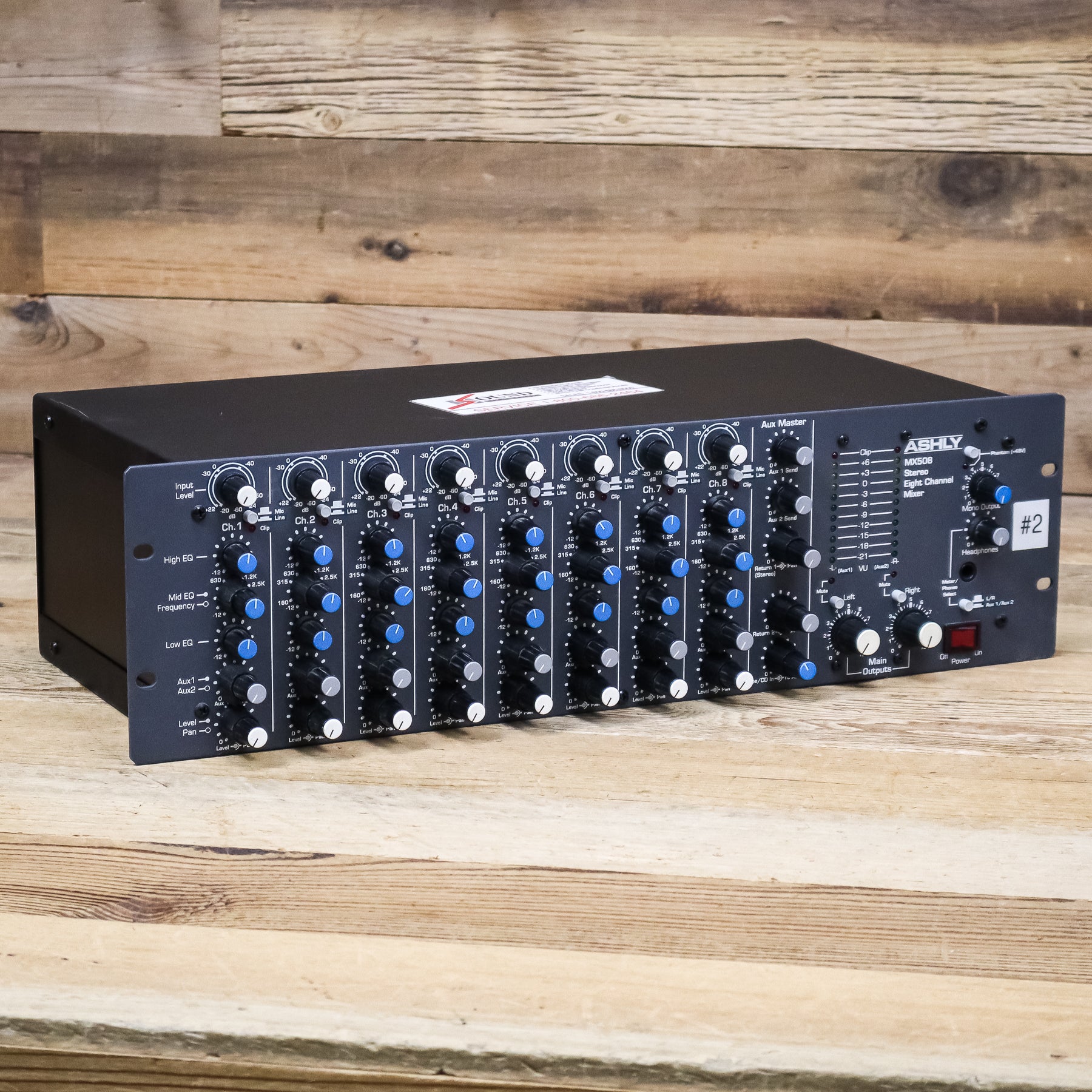

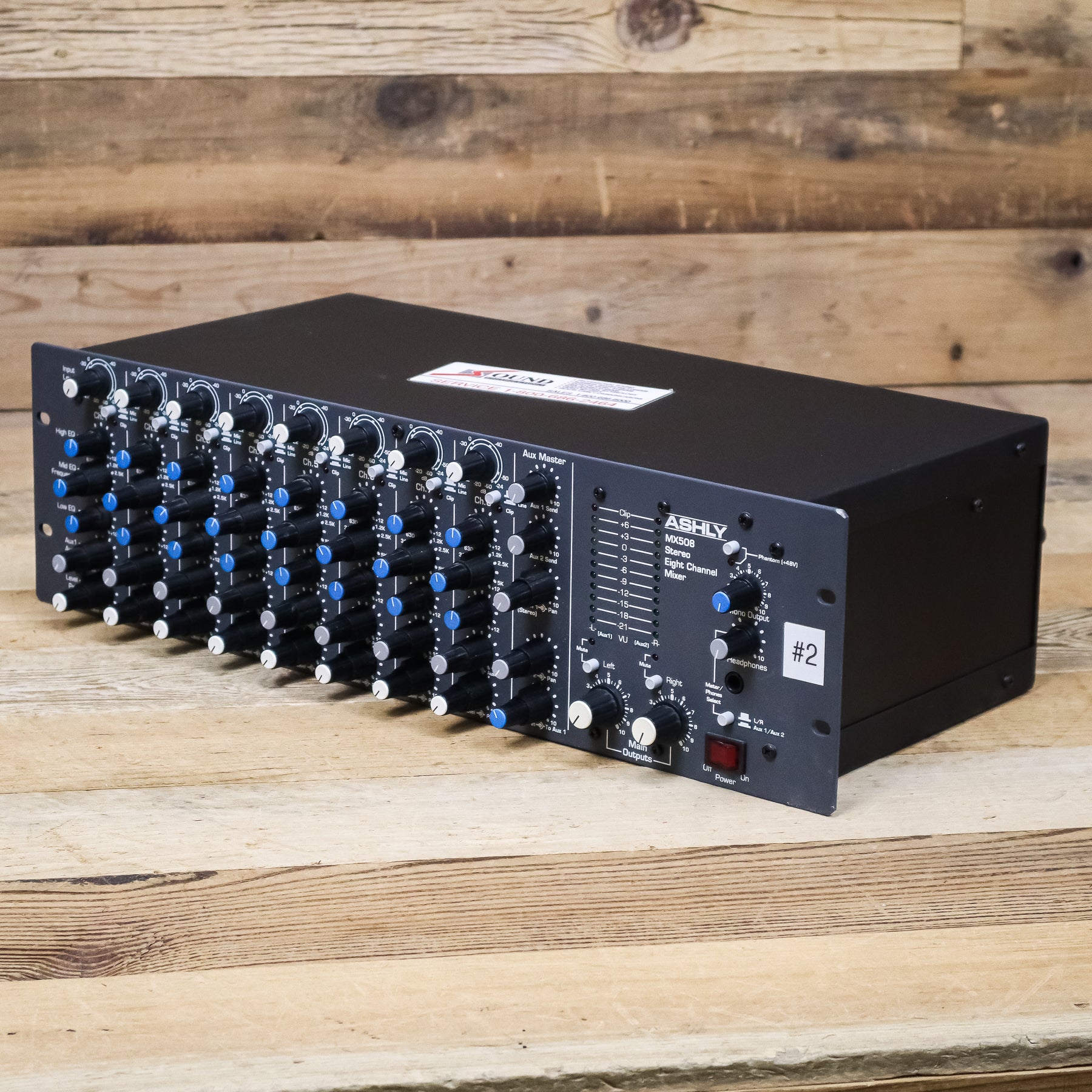

This mixer is in very good condition with normal cosmetic wear, has been tested and works great. Please see pictures for details on item condition. Only what is pictured is included.

Product Details

The Ashly MX-508 Line Mixer with EQ is an eight-input stereo rackmountable mixer. Designed for a multitude of applications, the MX-508 has an extensive mix of features for a small unit combined with excellent sound and quiet performance.

The MX-508 features 84 dB of gain to ensure full output with low-level or distant microphones. Several years of research went into the microphone preamp and the result is a discrete circuit with better than -129 dBu Equivalent Input Noise (EIN) and very low distortion. Low and High Shelving EQ combined with mid-band peaking EQ tunable from 140Hz and 8 kHz make for a very flexible tone control. Phantom power of +48 VDC is provided for condenser microphones via a switch on the front panel. Precision input transformers are easily field-installable, and each input has its own 20dB pad switch. Variable gain trim and Mic/Line selection switches are also found on each input channel. Rounding out the list of standard input features are a Peak Clip indicator, two Aux Sends (factory-set with one pre-EQ and level and the other post-EQ and level, these sends may be modified by a qualified technician), In/Out channel patching, Level and Pan controls, and both balanced XLR Microphone and TRS Line inputs.

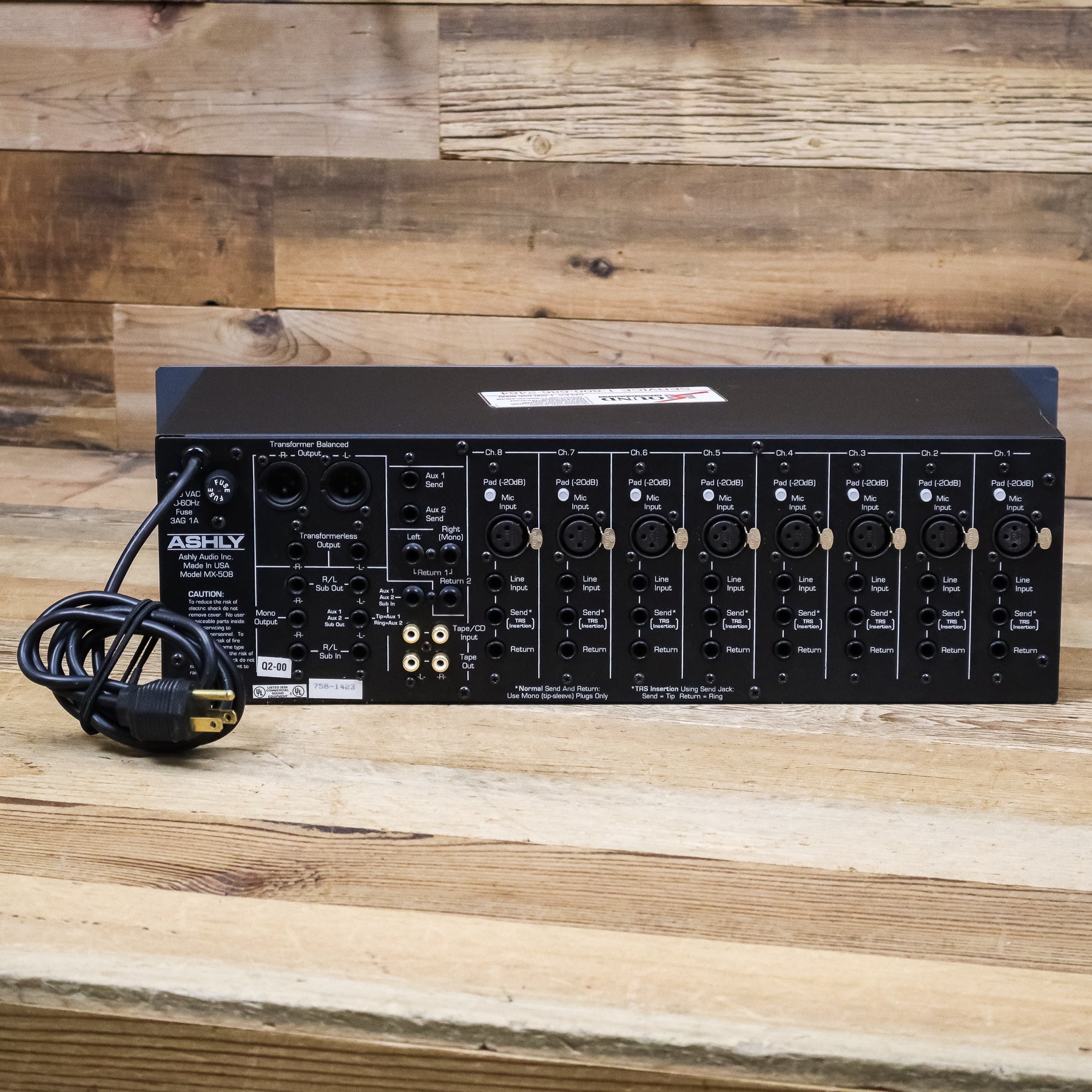

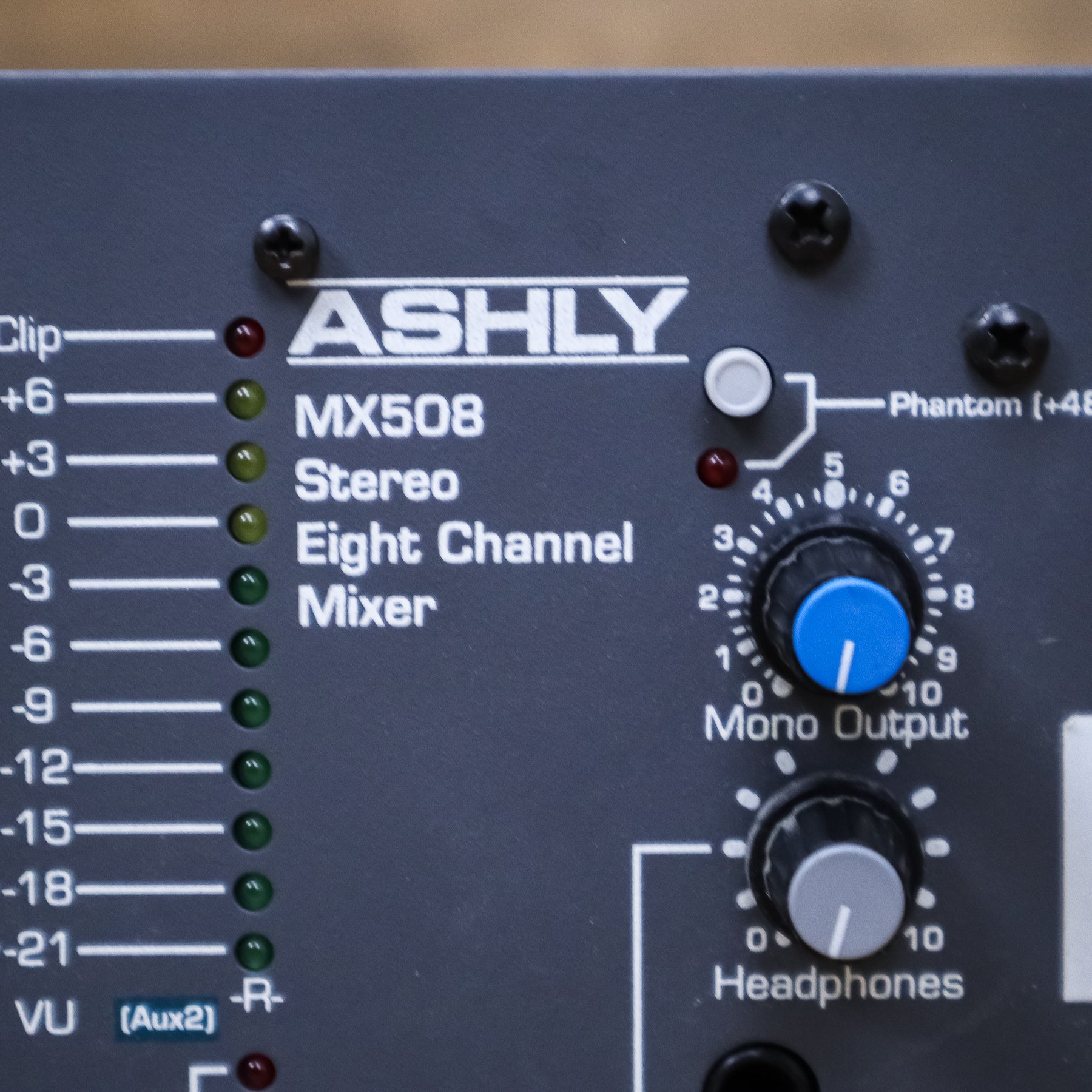

Transformer-balanced Left and Right XLR outputs are standard, as are balanced Left and Right TRS 1/4" outs. There is also an independent Mono output with its own front panel level control, as well as a selectable Headphone output with Level Control. There are Pre-Master Sub In/Out patch points for linking other mixers, such as the Ashly MM-106 six-input microphone mixer. Peak Clip indicators are also provided for the Outputs, and the 10-Segment LED Meters may be selected to monitor either Program Left and Right or Aux 1 and 2. Maximum output level is +24dB into 600 ohms.

The MX-508 also has two Master Aux Sends and two panable Master Aux Returns (one stereo and the other mono). There is an additional stereo RCA Tape/CD Input with level control to the Mains or Aux 1. Stereo RCA Tape Outputs are also provided. The MX-508 combines traditional Ashly quality with internally modular construction in a package offering outstanding value and reliability.
